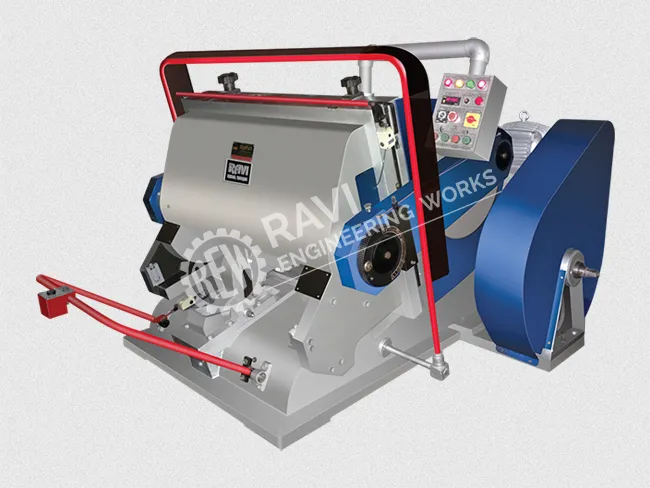

High-Performance Die Punching Cutting Creasing Machine by Ravi Brand
Ravi Brand Platen Punching Machine is designed for Cutting, Creasing and Embossing on Paper, Duplex Board, Paper Corrugated Sheets, Fibreglass sheets, Vinyl, Foam Rubber, Felt, Gaskets, Wood Veneers, Leather, Sponge Rubber, Cork, Plastics, Polythene, Linoleum & PVC Sheets, etc
Salient Features of Die Punching Cutting Creasing Machine
DWELL TIMING DEVICE' can set timing of the moving platen from 0.5 to 10 seconds. At dwell option, the moving platen remains stationary in an open position for the set dwell time before resuming motion. This is very useful feature when large/difficult jobs are being fed or when fine registration of Die in a job is required. This feature minimizes wastage in jobs.
'ELECTROMAGNETIC CLUTCH & BRAKE' enables push button control of the machine for easy and efficient operation. The advanced electromagnetic clutch & brake do not require lubrication.
Multiple 'SAFETY DEVICES' viz. Off-position at Rotary Switch, Leg operated Safety Guard, Protective Wrap-Around Safety Guard, Trip Bar on the moving platen (optional), Safety is ensured by full electrical interlocking. All moving parts of the machine are protected by approved safety guards.
Quick & simple adjustment of impression / pressure equalization independent for each side. The set value of impression can be read on graduated scale.
High performance Precision Gears viz. Helical & Herringbone Gears (it works silently, without vibration and have capacity to bear extreme load).
The Platen is driven by the ball bearing mounted shafts through a pair of reduction gears protected by guards.
Rigid construction and compact design of the machine requires minimum floor-space.
Number of impressions made by the machine are displayed on the operating penal.
Main Shaft & Connecting Arms are mounted on Phosphor Bronze Bushes.
One piece casting, properly stress relieved.
All the shafts are of high quality alloy-steel.
High performance Precision Gears.
Single piece connecting arms of steel.
Moving Platen running on hardened steel rails
Technical Specifications of Die Punching Cutting Creasing Machine
Size (Inches)
20 x 26
20 x 32
25 x 37
32 x 42
36 x 50
36 x 50
42 x 62
52" x 72"
Platen Size
23 x 29
25 x 35
28 x 40
35 x 45
39 x 53
40 x 56
45 x 65
55 x 75
Impression / Hr
2000
2000
1600
1300
1100
960
960
860
Motor (H.P.)
3
3
5
7.5
7.5
7.5
10
12
Floor Space (Inches)
60 x 45
60 x 45
60 x 55
78 x 78
85 x 80
85 x 80
86 x 82
90 x 100
Wt. Approx (Kgs)
2700
3200
3800
5700
6600
6800
10500
12000
