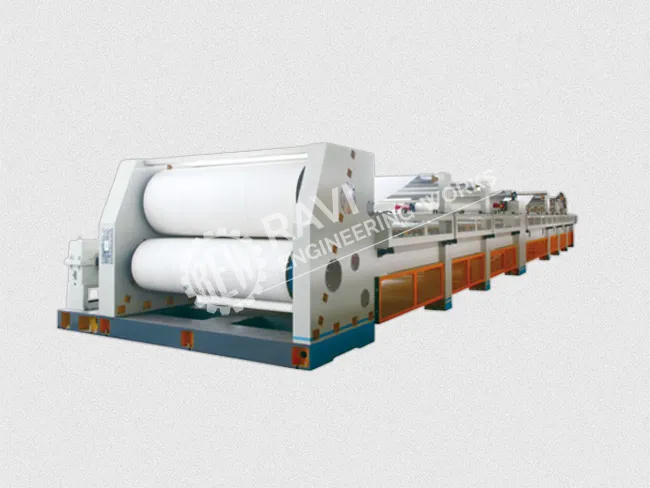

The double facer is designed to heat, dry and shape the corrugated cardboard. It consists of two parts, the drying
and shaping system, plus the main driving system. The body of the double facer is surrounded with cotton belt. The
main driving system functions as a pusher of the cotton belt to further make the cardboard move forwards. Its
location in DHCL high speed corrugated sheet production line is illustrated in the diagram
Structural Features of Double Facer Corrugation Machine
The main body of double facer is made of high strength wide channel steel for stable running at high speed.
Touch plate is applied to both hot part and cooling part for auto stable lifting with safety and reliability.
Hot plate is professionally fabricated as per the National Safety Standard of Pressure Vessel, which features S-shape airflow design inside to improve the steam utilization ratio. In addition, it’s welded with multi-piece reinforcing ribs to keep them in shape under high temperature.
The steam inlet and outlet in the pipeline are crossed for uniform temperature of hot plates.
The drive part adopts large diameter anilox wearable rubber to reduce the frequency of belt slipping for high running stability.
The main drive shaft is matched with speed encoder to be on line with glue machine.
The variable frequency drive motor is adopted for wide-range speed adjusting and stable running.
The separate drive box is in bevel gear structure with high precision and strength gears made of good quality alloy steel treated with heating and fine fabricating for low noise and large transmitted torque, easy for service and maintenance.
The separate oil pumps matched with copper tubes are arranged at bearing and gear locations for cooling to improve the service life of gear box.
Technical Specifications of Double Facer Corrugation Machine
Size
Motor
Heating Load
Steam Req.
Weight
Floor
H.P.
(K.W.)
Kg./Hr.
App. (MT.)
Space
42”
9
33
200
5
7.0’×16’
54”
11.5
33
300
5.5
8.5’×16’
64”
11.5
43
300
6
9.5’×16’
72”
14
on steam
400
6.5
10’×17’
84”
16.5
on steam
400
7.5
11’×18’
FAQs
A Double Profile Corrugation Machine is used to manufacture corrugated sheets with dual flute profiles for higher strength and durability. It is widely used in corrugated box and packaging industries.
Ravi is a trusted manufacturer of Double Profile Corrugation Machines in India, supplying high-performance corrugation machinery for domestic and export markets.
Double Profile Corrugation Machines are used for producing corrugated sheets for boxes, cartons, industrial packaging, and protective packaging solutions.
Yes, the Ravi Double Profile Corrugation Machine is manufactured to meet international quality standards and is supplied to customers across global markets.
Yes, Ravi provides installation guidance, technical support, and spare parts assistance for Double Profile Corrugation Machines.
